Product Details

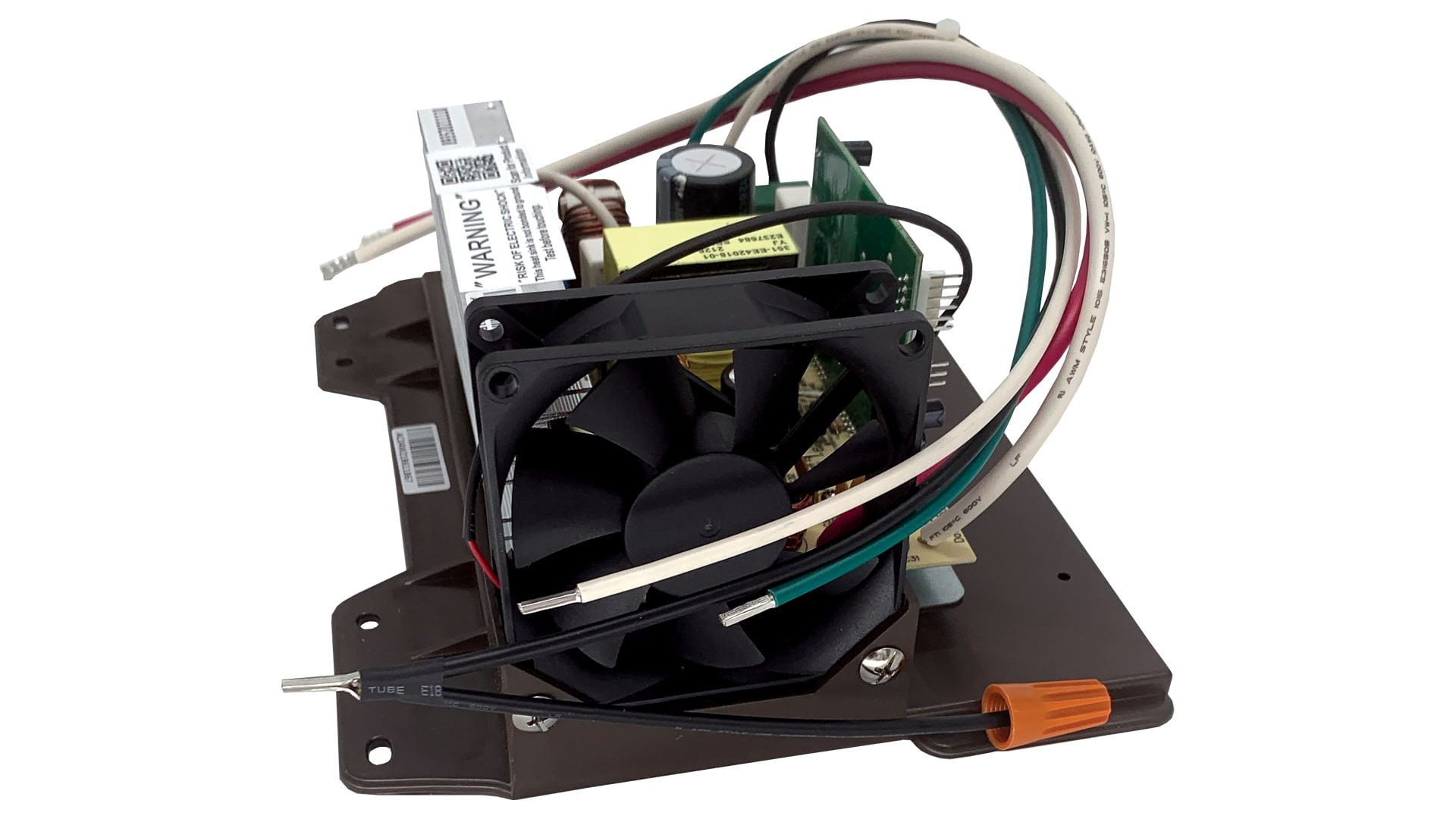

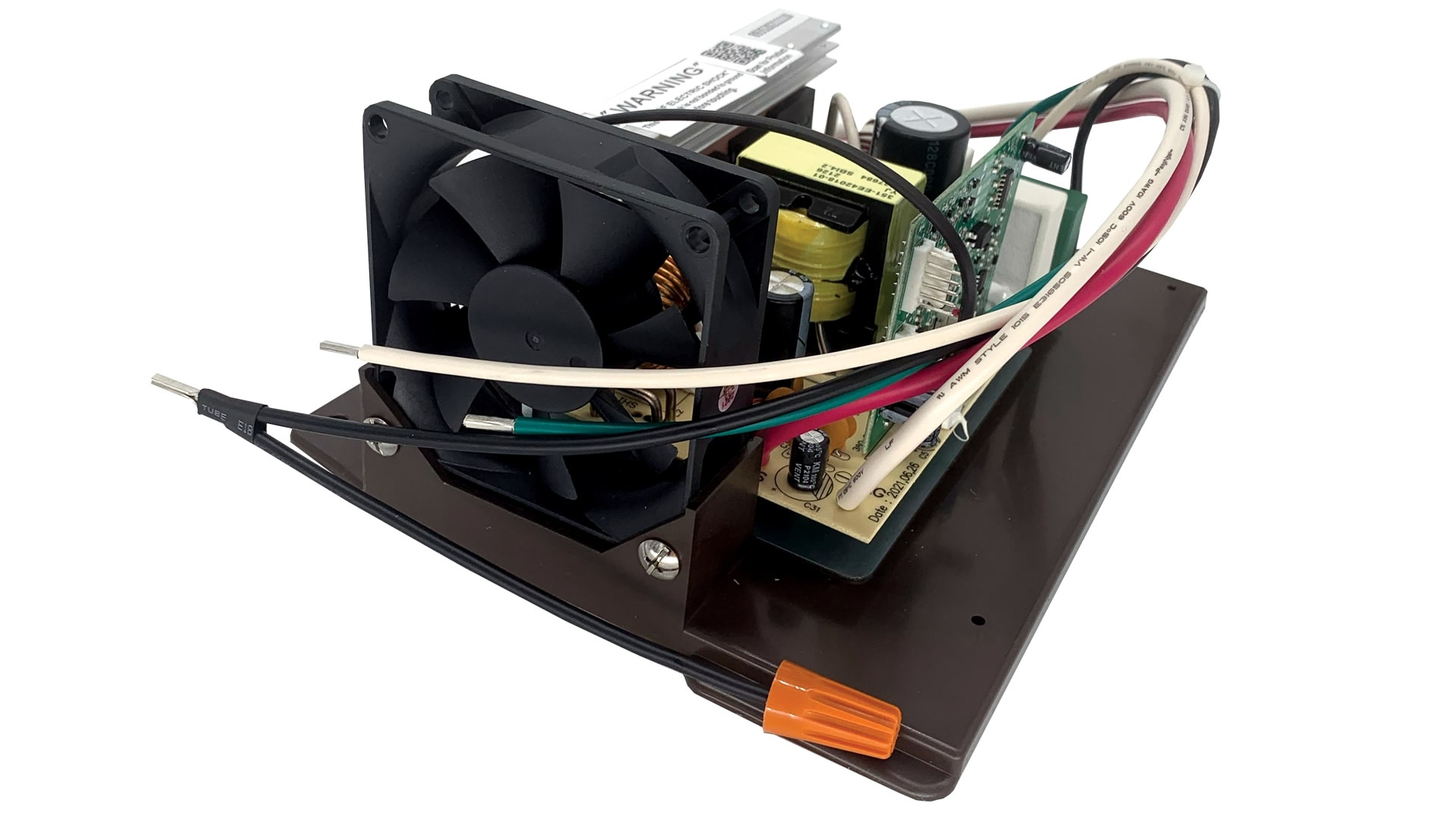

8900 Series 130 AC to 13.6 DC 35A Main Board Assembly (WF-8935-AD-MBA) by WFCO®. Is a quick, easy replacement part for all power centers that now includes an industry 1st, Patent Pending Auto-Detect technology. This new microprocessor-driven technology will recognize lithium ion and lead acid battery chemistries and automatically adjust the charging profile to match the battery type. No more buttons. No more switches. RV owners will have the peace of mind that their batteries will be accurately charged, eliminating over and undercharging risks. Additionally, battery life will be maximized with multi-stage charging and current monitoring in both lead acid and lithium profiles. It installs easily with only two screws, three AC wires, and two DC wires. With no need to re-wire, installation is only 10 minutes! Customers also have the option for Reverse Polarity Detection that meets new RVIA & NEC requirements with audible alarm notification. No additional wiring or hookup is required and accepts hi-pot testing.
Notes
- Replaces the lower power converter section on any WF-8900 Series converter. Installs easily with only two screws, three AC wires, and two DC wires.
Specifications
| Converting Type: AC/DC |
| Input Voltage (VDC): 130 AC |
| Output Voltage (VDC): 13.6 DC |
| Output Amperage: 35A |
| Size: 7-1/16"W x 3-7/8"H x 9-1/2"D |
| Power Input: 600W |
| Input Voltage: 105-130 VAC/60 HzOutput Current (LA / L2): 35A/32.5AConverter Type: 3 Stage Converter Charger / 2 Stage Converter ChargerVoltage Output: 13.2 - 14.4 VDC / 13.6 - 14.6 VDCNormal mode: 13.6 VDCTrickle charge mode (LA Only): 13.2 VDCBulk charge mode: 14.4 VDC / 14.6 VDCDimensions: 7-1/16"W x 3-7/8"H x 9-1/2"DWeight: 4 lbs |
Features
- Designed withoptimized charging for battery chemistry in the unit. For Lead Acid Batteries, WFCO's automatic three-stage converter handles every charging need for the RV while extending the battery's life. For Lithium-Ion Batteries, the multi-stage process ensures a safe operating voltage for all loads, replaces energy back into the battery and assures the lithium cells inside the battery remain balanced.
- Trusted by veteran boondockers, campers, and RVers
- Designed to help ensure the reliable and efficient power supply
- Constructed from top-notch materials for durability and long-lasting life
- Engineered to handle the rigors of RV life
- Manufactured to meet your RV power needs
WFCO® Group has been serving the RV and Automotive Industries for over 40 years. Founded in 1976, WFCO® provides a variety of components and tools ranging from power switching components to pneumatic accessories. Since its beginning, the WFCO Group has had numerous milestones, including the establishment of the Electronics Division (WFCO Electronics) in 1999. The Electronics Division prides itself on being on the forefront of trends, with the continuous development of innovative products. This has helped WFCO Electronics become the leader in manufacturing, distribution and servicing of power conversion products in the RV industry, preferred more than 4-to-1 by RV manufacturers.
